Features

Shoprider Trooper Features-------Model/SKU: UL8W36

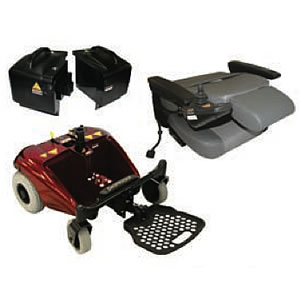

Swivel Captain’s seat Removable Battery Packs with U1 Batteries Length and angle adjustable footplate Height adjustable seat & adjustable arms 300lbs weight capacity

Specifications

Specification	Data
Turning Radius	32.5"
Max Speed	3.75mph
Weight capacity	300lbs
Range	14
Charger type	4 amp off board
Drive wheels	9" flat free tires
Caster wheels	6" flat free
Seat width	20" high back reclining executive seat
Overall Length	37"
Overall Width	24"
Overall Height	44"
Battery Type	U-1 x 2
Weight of Base	60lbs
Weight of batteries	60lbs
Weight of seat	40lbs
Total weight (including batteries/seat/base	160lbs
Ground Clearance	2.25
Minimum seat height	19.5
Maximum seat height	22.5

Warranty/images

3 year warranty on Frame

12 Month warranty on Electronic controller

12 Month Warranty on all electronic parts

12 Month warranty on Motors, brakes,transaxle (L/R)

6 Month warranty on Batteries (2)

1 year in home service warranty

Additional Images

Measuring Guide

Wheelchair/Powerchair measuring Guide

Hip Width: Use this to figure seat width if it is the widest point. Widest Point: Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. Chest Width: Measure the widest point of the thorax just below the arm pit. This measurement may influence system width or back width. Heel to Knee: Use this for legrest extensions and seat height. SRP to Knee (Seat Reference Point to Knee): This will determine the seat depth. Elbow to SRP (Elbow to Seat Reference Point): Measure this width with the arm in a 90 degree angle at the elbow and the shoulder in a neutral position. Shoulder HeightSeat back height This will determine the height and the style of the back panel or the start for a custom back. Head Height: This will help determine the proper headrest height.

Seat Width: Diagram #

To determine the proper seat width, measure the width of your body from hip to hip (outside hip) while seating down. Please be sure to add an extra inch or so to allow for bulky clothes if relevant.

Seat Depth: Diagram #

To determine the appropriate depth measure from the most posterior point of the body to the inside of your knee. Please be sure to remove at least 2 inches. This helps to allow for a more relaxed posture and also some individuals may prefer additional leg overhang to make room for their hand when lifting their leg.

Seat Back Height: Diagram #

This is measured from the seat base to the top of the chair back. Often users of power chairs need upper back support. Our standard medium back support works fine.

Front seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the chair will be foot-propelled
